Targeting campaign audiences

Define your audience criteria and highly customize the targeting of your campaigns with any combination of user profile and user behavior filters with Swrve's campaign audience builder.

Audiences vs. segments​

Campaign audience filters are grouped under two sections:

  • User Profile filters - criteria that is based on user, device, or event profiles.
  • User Behavior filters - filters based on historical user behavior.

If you're creating segments for analytics or resource A/B testing purposes, you can use any combination of User Profile filters, including event recency and date-related user properties. For more information on the filter options available for creating segments and audiences, see Segment and audience filters.


Defining your target audience​

When you define your target audience in the campaign builder, the Audience screen (or Define Target Audience section for in-app and Conversation campaigns) displays the options available for targeting your campaign.

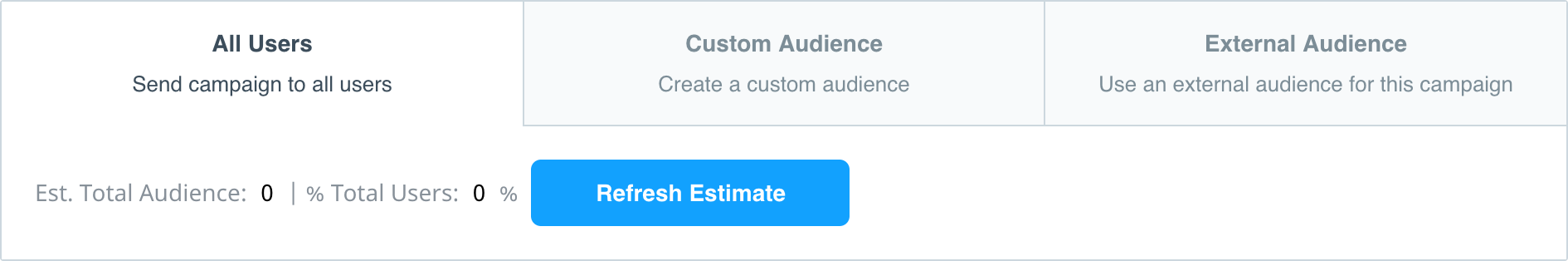

Audience screen tabs All Users, Custom Audience, and External Audience, with Est. Total Audience and Refresh Estimate

Depending on the campaign channel and your third-party integrations, the following options are available:

  • All Users - send the campaign to all users.
  • Custom Audience - build a custom audience using any combination of user profile and user behavior filters.
  • External Audience - use an audience from an external source (for example, Marketing Cloud) or a linked push notification campaign.

Creating a custom audience​

Select the Custom Audience tab to build a custom audience based on any combination of user profile and user behavior filters.

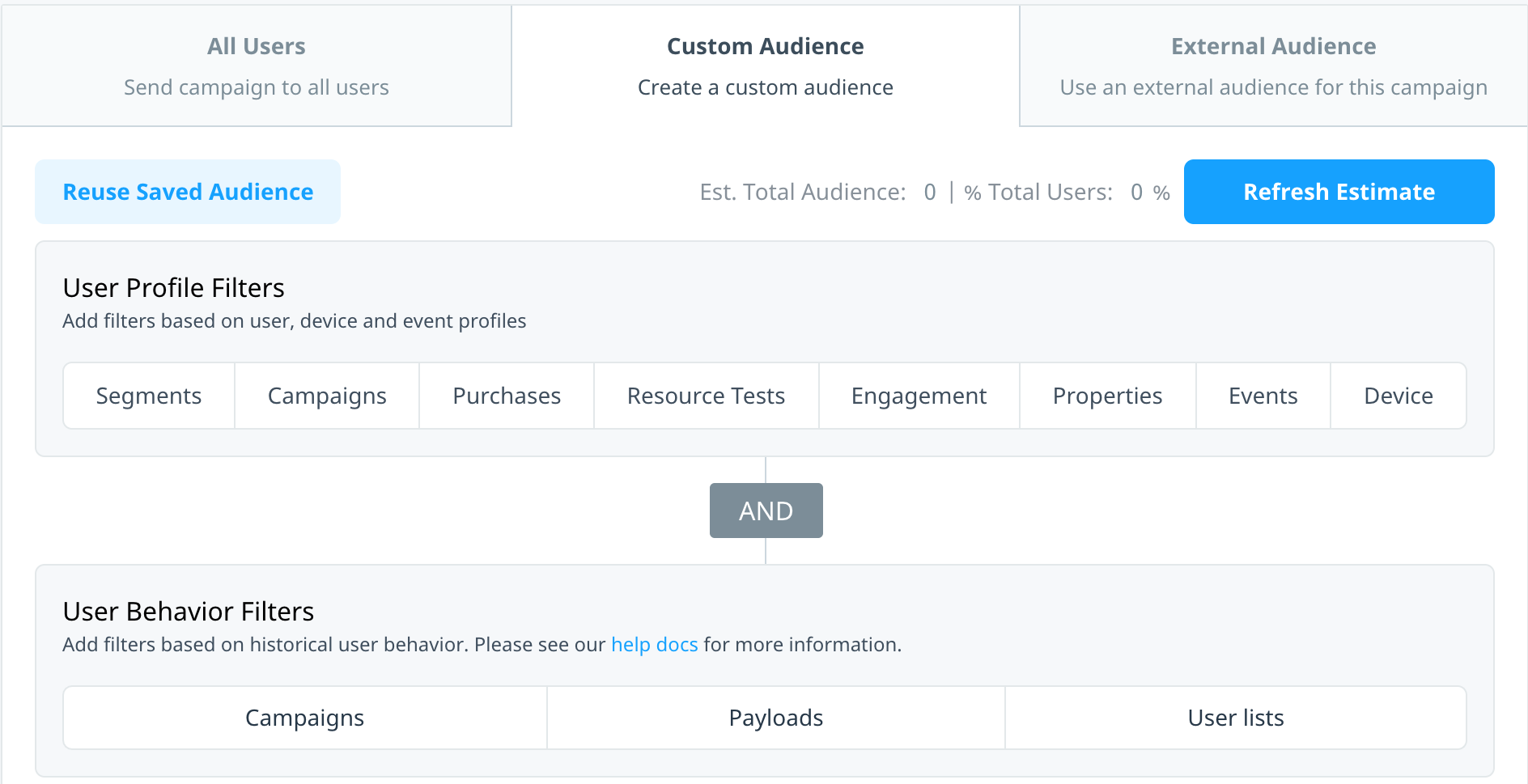

Custom Audience tab showing User Profile Filters and User Behavior Filters categories joined by AND, plus Reuse Saved Audience

The Est. Total Audience displays an estimate of your users who qualify for the audience. The estimated audience is calculated slightly differently depending on the campaign channel. For example, in-app campaign audiences are based on a sample of recently active users in the last seven days, while push notification audiences are based on a sample of your total user population. To update the audience estimate as you add more filters, select Refresh Estimate.

User profile filters​

User profile filters target your audience based on information contained in their internal Swrve user profile. For detailed information about the type of data and filter operators available, see the appropriate section in Segment and audience filters.

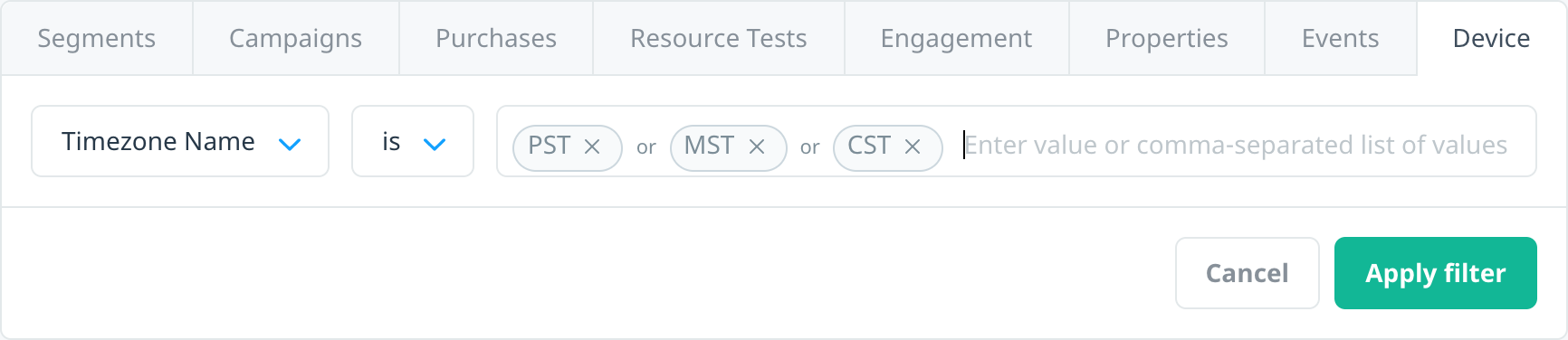

User profile Device filter with Timezone Name is PST or MST or CST, showing multiple values entered in one filter

Filter NameDescription
SegmentsFilters the audience based on the definition of an existing user segment and whether or not the user is part of that segment.
CampaignsFilters the audience based on their exposure and interaction, past or present, to specific in-app message campaigns.
PurchasesFilters the audience based on purchase-related behavior such as the total amount spent or the total number or recency of in-app purchases.
Resource TestsFilters the audience based on their exposure to specific treatments in a resource A/B test.
EngagementFilters the audience based on engagement-related criteria such as the number of app sessions and the lifetime minutes spent in the app.
PropertiesFilters the audience based on custom user properties.
EventsFilters the audience based on the total count of the event or the recency of a custom event.
DeviceFilters the audience based on device-related criteria such as device name, operating system, or version.

To add a user profile filter:

  1. Under User Profile Filters, select the type of data on which you want to base your filter.
  2. Create your filter using the filter type, operator, and value fields provided. To include multiple values in a filter, select or enter the additional values in the value box.
  3. Select Apply filter to add your filter. The audience definition displays a summary of the filters as you add them.
  4. Optionally, to create more complex filters, use secondary filters to apply additional constraints within one group.

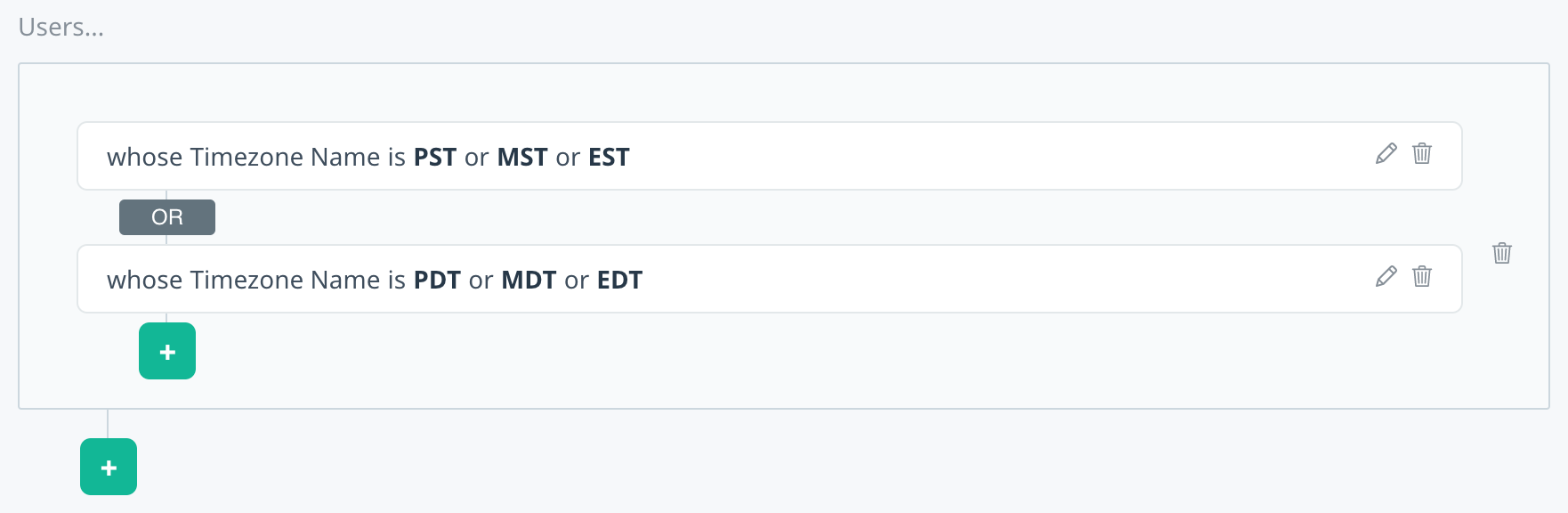

To add a secondary filter, on the filter summary select add (+) and then select the operator you want to use: Select Operator popup offering AND or OR after selecting add on the filter summary to create a secondary filter 5. Add the additional filter criteria and then select Apply filter. The filter definition is added to the summary and you can continue to add more secondary filters as required. Filter summary with two Timezone Name secondary filters joined by OR inside one filter group 6. To add another group of filters to your audience, select Add a new filter + and then select the primary operator you want to use. Select Operator popup asking for the primary operator, AND or OR, when adding a new filter group 7. Repeat steps 1 to 3 above for every additional filter.

Depending on your comfort level with AND/OR logic, use the primary and secondary filter operators to create audiences that are as basic or advanced as needed. For more information about advanced filters, see Segment and audience filters.

User behavior filters​

User behavior filters allow for more granular targeting based on push notification campaign events and custom event payloads.

Campaigns​

Target your audience based on their exposure to and interactions with push notification campaigns.

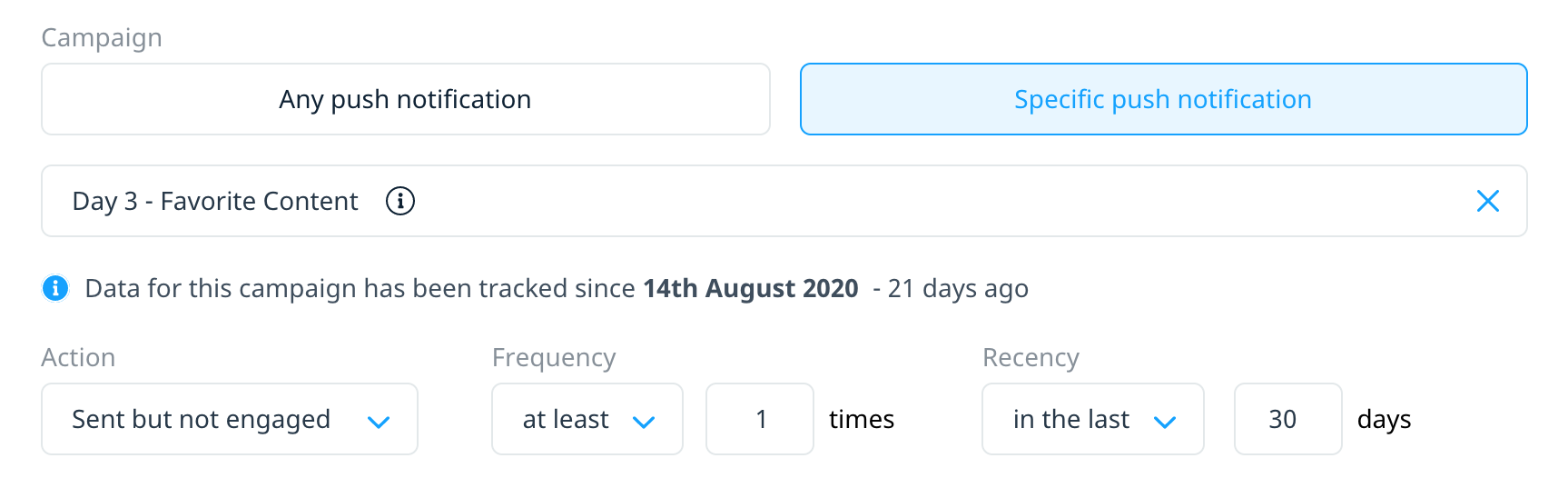

Campaign behavior filter targeting users sent but not engaged with a specific push notification at least once in the last 30 days

To target your audience using push notification events, you must first launch a push notification campaign in Swrve. For more information, see Creating a multi-platform push campaign.

Payloads​

Target your audience based on their historical activity using event payloads.

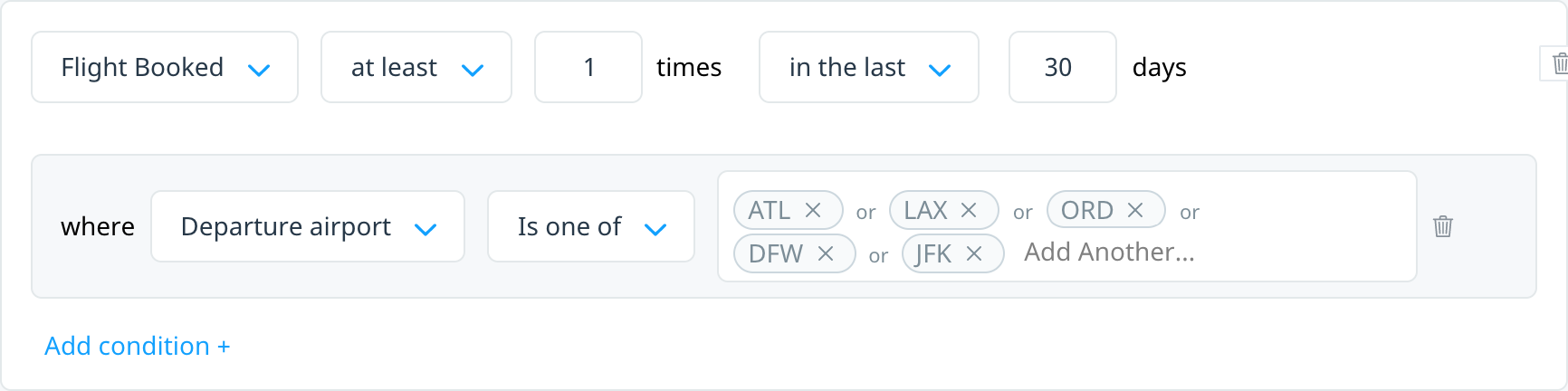

Payload filter for users who triggered Flight Booked at least once in 30 days where Departure airport is one of five airport codes

To target your audience using event payloads, you must first configure the required events in your Swrve dashboard. For more information, see Configuring event payloads or contact your CSM at support@messagegears.com. They will work with you to define the best schema for the events and payloads you want to use to target your users. For more information about how to create user behavior filters, see Targeting your audience by event payloads..

User lists​

Target your users based on their presence in a user list.

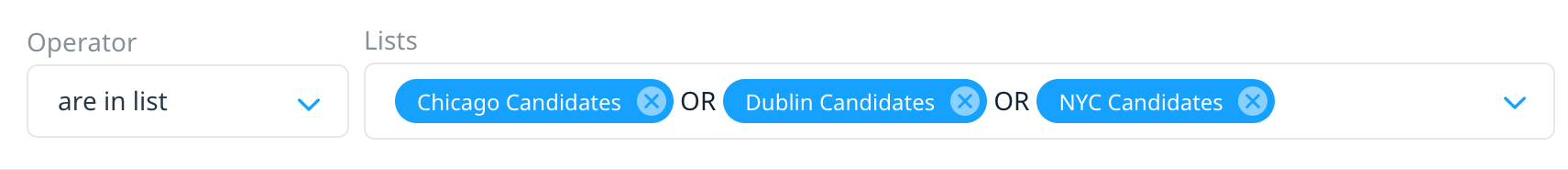

User lists filter using the are in list operator with three sample candidate lists joined by ORTo target your user lists in a campaign, you must first create and add users to the list. For more information, see User lists, or contact your CSM at support@messagegears.com for further assistance.


Saved audiences​

Save your audience definitions for reuse in other campaigns, whether directly in Swrve or with our new Experience APIs. There are two methods for creating reusable audiences in Swrve:

  • From the Saved audiences management screen.
  • When building a campaign's target audience.

Create a saved audience​

Use the Saved audiences screen to create and manage your audiences outside of the campaign workflow. To view and manage your audiences, on the Manage menu, select Saved audiences.

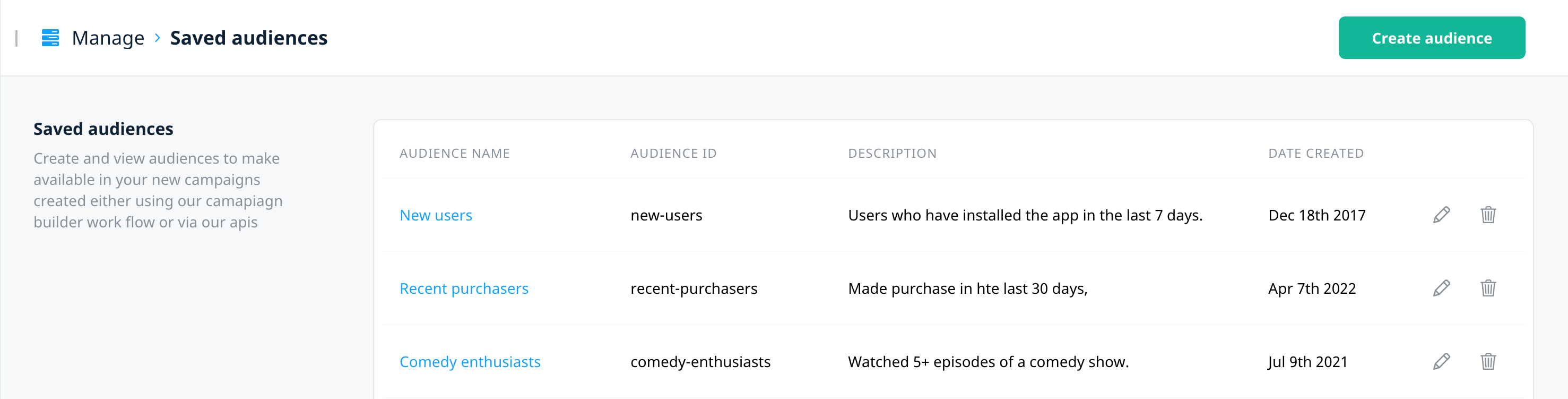

Manage, Saved audiences screen listing sample audiences with name, ID, description, date created, and a Create audience button

To create a saved audience:

  1. On the Saved audiences screen, select Create audience.
  2. On the New saved audience screen, enter the following details:
    • Audience name - The audience name, as you want it to display in the campaign audience builder.
    • Audience ID - A unique value that identifies the audience when using Swrve’s Audience and Experience APIs. Once you set the Audience ID, it cannot be changed.
    • Description – Optionally, enter a description for the audience. This might be helpful if you have multiple audiences with similar names.
  3. Build your audience filters based on any combination of user profile and behavior filters.
  4. After you’ve added all required filters, select Save.

Once saved, the audience displays in the Saved audiences list.

Save an audience while building your campaign​

To save your audience from within the campaign workflow, define your audience on the Custom Audience tab of the audience builder, and then select the Save audience for later check box. Enter a name and ID for the audience in the appropriate boxes and then select Save audience.

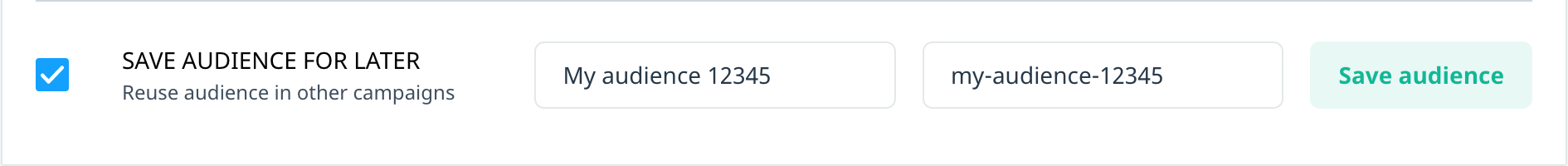

Save audience for later check box selected with a sample audience name and ID entered beside the Save audience button

Reuse a saved audience​

To use a saved audience in your campaign, on the Custom Audience tab, select Reuse Saved Audience. Select the audience you want to use from the list and then select Import. The audience summary displays the filters included in the saved audience, but you can add to, edit, or remove any filters as needed.

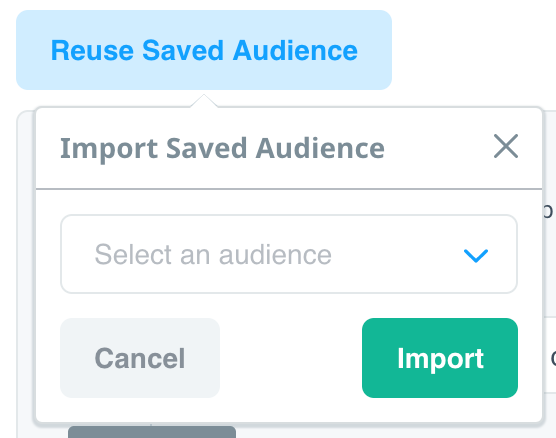

Import Saved Audience popup opened from Reuse Saved Audience, with a Select an audience list and Import button

For information on how to use saved audiences when creating campaigns via API, see our Retrieve and target saved audiences tutorial.

Manage your saved audiences​

Use the options available on the Saved audiences screen to create a new audience, edit the description of an existing audience, or delete an audience. The Saved audiences screen displays the following information for each audience:

ColumnDescription
NameThe saved audience name as it appears in the Custom Audience tab of the audience builder.
IDThe ID you assigned the audience for use with Swrve Experience APIs. Once you set the ID, it cannot be changed.
DescriptionThe audience description.
Date createdThe date the audience was created.

The following options are available for managing your saved audiences.

Edit an audience​

  1. In the row of the audience you want to edit, select edit.
  2. Update the name, description, or filters of the audience as required, and then select Save.

Delete an audience​

  1. In the row of the audience you want to delete, select delete *.
  2. A message prompts you to confirm whether you want to delete the saved audience. To confirm your choice, select Continue.

Editing a saved audience’s filters or deleting an audience does not affect any campaigns using that audience, regardless of the campaign’s state. The saved audience definition is applied to a campaign, in its current state, at the time you add the target audience, and is not linked to the campaign after its filters are imported as the campaign’s target audience criteria.


External audiences​

To use an audience from an external source, such as a marketing cloud or linked push notification campaign, select the External Audience tab.

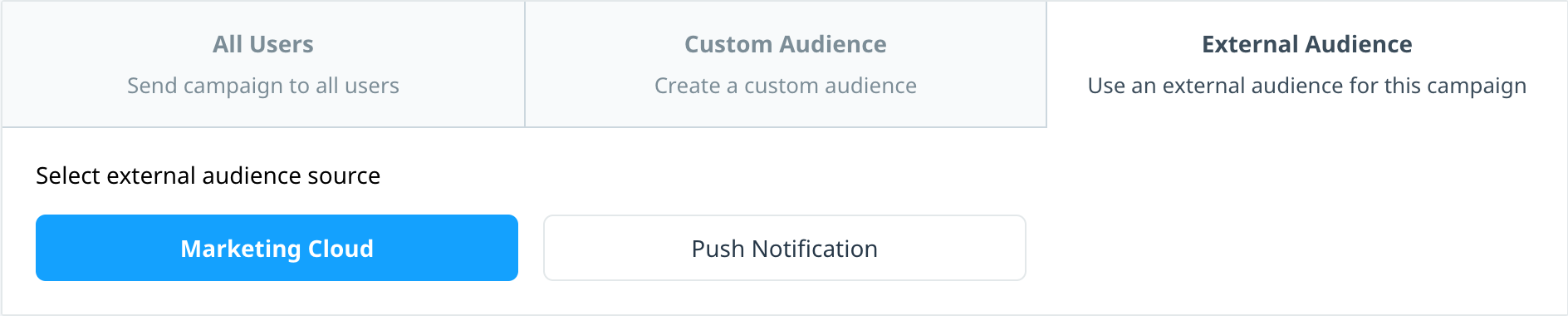

External Audience tab with external audience source options Marketing Cloud, selected, and Push Notification

The external audience options are:

  • Marketing Cloud - select this option to make an in-app message or Conversation campaign available to use in your marketing cloud app. Swrve has integrations with the following marketing clouds:

Oracle Eloqua

Push Notification - select this option to make an in-app message or Conversation campaign available for linking from a push notification. For more information about linked campaigns, see Push notifications to in-app campaigns.
