Thumbnail v3.1

The Thumbnail API is used to generate a jpg image representation of HTML or Text content. The image is hosted by MessageGears and can be reference at http://thumbnails.messagegears.net/<account id>/<image id>.jpg. The Image URL is also returned in the response from a successful API call.

Prior Versions

  • none

Required Parameters

Parameter Description
Action Thumbnail
AccountId The MessageGears account id to which this item belongs.
ApiKey A secret key only known by you. Keep this key confidential.
Content The HTML or text content to be rendered as an image
ImageId The base name of the image file to be created. It will be appended with the “.jpg” extension automatically.
ImageSize The size of the image to be created. Value values are: MICRO, SMALL, SMEDIUM, MEDIUM, LARGE, and GRANDE. The sizes of the images are 64 x 48, 80 x 60, 220 x 165, 232 x 174, 400 x 300, and 800 x 600 respectively.

Programming Examples

Request

https://api.messagegears.net/3.1/WebService
?Action=Thumbnail
&AccountId=123456789
&ApiKey=8bb6118f8fd6935ad0876a3be34a717d32708ffd
&Content=<html>Hello, World!</html>
&ImageId=12345
&ImageSize=MEDIUM

Response

<ThumbnailResponse>
    <RequestId>i3012-ae148ce1-a991-4304-984d-b3b4b0354970</RequestId>
    <Result>REQUEST_SUCCESSFUL</Result>
    <imageUrl>http://thumbnails.messagegears.net/123456789/12345.jpg</imageUrl>
</ThumbnailResponse>

Click here to see more details about using the MessageGears Java SDK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
package com.messagegears.examples;

import com.messagegears.sdk.MessageGearsClient;
import com.messagegears.sdk.MessageGearsProperties;
import com.messagegears.sdk.model.ThumbnailSize;
import com.messagegears.sdk.model.request.ThumbnailRequest;
import com.messagegears.sdk.output.ScreenWriter;
import com.messagegears.sdk.v3_1.ThumbnailResponse;

public class Thumbnail {
    public static final String MY_EMAIL_ADDRESS = "place your email address here";
    public static final String MY_MESSAGEGEARS_ACCOUNT_ID = "place your MessageGears account id here";
    public static final String MY_MESSAGEGEARS_API_KEY = "place your MessageGears api key here";

    public static void main(String[] args) {
        // Update the properties object containing the necessary properties
        MessageGearsProperties properties = new MessageGearsProperties();
        properties.setMyMessageGearsAccountId(MY_MESSAGEGEARS_ACCOUNT_ID);
        properties.setMyMessageGearsApiKey(MY_MESSAGEGEARS_API_KEY);

        // Update the main client object
        MessageGearsClient client = new MessageGearsClient(properties);

        // Update a bulk campaign request
        ThumbnailRequest request = new ThumbnailRequest();

        // Set the content for the thumbnail
        request.setContent("<html>Hello, World!</html>");

        // Set the image file name (prefix)
        request.setImageId("12345");

        // Set the thumbnail image size
        request.setThumbnailSize(ThumbnailSize.MEDIUM);

        // Execute the request
        ThumbnailResponse response = client.thumbnail(request);

        // Print the result (success or failure)
        ScreenWriter.printResponse(response);
    }

}
package com.messagegears.examples;

import com.messagegears.sdk.MessageGearsClient;
import com.messagegears.sdk.MessageGearsProperties;
import com.messagegears.sdk.model.ThumbnailSize;
import com.messagegears.sdk.model.request.ThumbnailRequest;
import com.messagegears.sdk.output.ScreenWriter;
import com.messagegears.sdk.v3_1.ThumbnailResponse;

public class Thumbnail {
	public static final String MY_EMAIL_ADDRESS = "place your email address here";
	public static final String MY_MESSAGEGEARS_ACCOUNT_ID = "place your MessageGears account id here";
	public static final String MY_MESSAGEGEARS_API_KEY = "place your MessageGears api key here";

	public static void main(String[] args) {
		// Update the properties object containing the necessary properties
		MessageGearsProperties properties = new MessageGearsProperties();
		properties.setMyMessageGearsAccountId(MY_MESSAGEGEARS_ACCOUNT_ID);
		properties.setMyMessageGearsApiKey(MY_MESSAGEGEARS_API_KEY);

		// Update the main client object
		MessageGearsClient client = new MessageGearsClient(properties);

		// Update a bulk campaign request
		ThumbnailRequest request = new ThumbnailRequest();

		// Set the content for the thumbnail
		request.setContent("<html>Hello, World!</html>");

		// Set the image file name (prefix)
		request.setImageId("12345");

		// Set the thumbnail image size
		request.setThumbnailSize(ThumbnailSize.MEDIUM);

		// Execute the request
		ThumbnailResponse response = client.thumbnail(request);

		// Print the result (success or failure)
		ScreenWriter.printResponse(response);
	}

}

Click here to see more details about using the MessageGears .Net SDK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
using System;
using MessageGears;
using MessageGears.Model;
using MessageGears.Model.Generated;

namespace MessageGears.Sample
{
    public class ThumbnailSample
    {
        // Replace this value with your email address
        public const String MY_EMAIL_ADDRESS = "place your email address here";
        public const String MY_MESSAGEGEARS_ACCOUNT_ID = "place your MessageGears account id here";
        public const String MY_MESSAGEGEARS_API_KEY = "place your MessageGears api key here";

        public static void Main ()
        {
            // Create the properties object containing the necessary properties
            MessageGearsProperties props = new MessageGearsProperties();
            props.MyMessageGearsAccountId = MY_MESSAGEGEARS_ACCOUNT_ID;
            props.MyMessageGearsApiKey = MY_MESSAGEGEARS_API_KEY;

            // Create the main client object
            MessageGearsClient client = new MessageGearsClient(props);

            // Create a request
            ThumbnailRequest request = new ThumbnailRequest();

            // Set the thumbnail image content
            request.Content = "<html>Hello, World!</html>";

            // Set the image file name prefix
            request.ImageId = "12345";

            // Set the image size
            request.ThumbnailSize = ThumbnailSize.MEDIUM;

            // Execute the request
            ThumbnailResponse response = client.Thumbnail(request);

            // Print the result (success or failure)
            Console.WriteLine("Image URL: " + response.imageUrl);
            client.PrintResponse(response);
        }
    }
}
using System;
using MessageGears;
using MessageGears.Model;
using MessageGears.Model.Generated;

namespace MessageGears.Sample
{
    public class ThumbnailSample
    {
        // Replace this value with your email address
        public const String MY_EMAIL_ADDRESS = "place your email address here";
        public const String MY_MESSAGEGEARS_ACCOUNT_ID = "place your MessageGears account id here";
        public const String MY_MESSAGEGEARS_API_KEY = "place your MessageGears api key here";

        public static void Main ()
        {
            // Create the properties object containing the necessary properties
            MessageGearsProperties props = new MessageGearsProperties();
            props.MyMessageGearsAccountId = MY_MESSAGEGEARS_ACCOUNT_ID;
            props.MyMessageGearsApiKey = MY_MESSAGEGEARS_API_KEY;

            // Create the main client object
            MessageGearsClient client = new MessageGearsClient(props);

            // Create a request
            ThumbnailRequest request = new ThumbnailRequest();

			// Set the thumbnail image content
			request.Content = "<html>Hello, World!</html>";

			// Set the image file name prefix
			request.ImageId = "12345";

			// Set the image size
			request.ThumbnailSize = ThumbnailSize.MEDIUM;

            // Execute the request
            ThumbnailResponse response = client.Thumbnail(request);

            // Print the result (success or failure)
			Console.WriteLine("Image URL: " + response.imageUrl);
            client.PrintResponse(response);
        }
    }
}

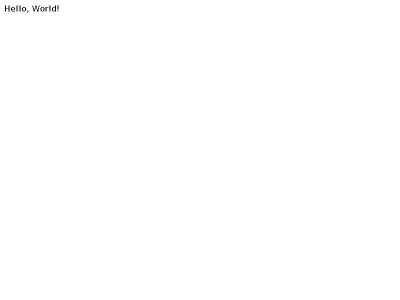

Sample Thumbnail Images

Content = “<html>Hello, World!</html>”

MICRO (64 x 48)

SMALL (80 x 60)

SMEDIUM (220 x 165)

MEDIUM (232 x 174)

LARGE (400 x 300)

GRANDE (800 x 600)
